CS6E
Four-valve cylinder head with high impact resistance; air-to-air intercooling for near-ambient temperature intake; pulse exhaust system boosts low-load efficiency by 12%.
Product Details
Product Model
Product Description
1.
Valve & Cylinder Head System
· Four-valve-per-cylinder layout improves air‑fuel mixing efficiency
· High‑strength alloy cylinder head resists knock impact
· Monobloc cylinder head with integrated drilled oil passages
2.
Air‑to‑Air Intercooled Turbo System
· Air‑to‑air intercooler delivers intake air near ambient temperature
· Pulse exhaust manifold increases low‑load efficiency by 12%
· Four-valve-per-cylinder layout improves air‑fuel mixing efficiency
· High‑strength alloy cylinder head resists knock impact
· Monobloc cylinder head with integrated drilled oil passages
2.
Air‑to‑Air Intercooled Turbo System
· Air‑to‑air intercooler delivers intake air near ambient temperature
· Pulse exhaust manifold increases low‑load efficiency by 12%
|
发动机性能参数/ENGINE TECHNICAL DATASHEET |
|||||
|
机型 Engine Model |
排量 Displacement |
缸数 Cylinders |
额定功率 Rated Power |
备用功率 Standy Power |
吸气方式 Apiration |
|
CS6E-D555 |
19 L |
6 |
470kw |
555kw |
空空中冷/Turbocharged &Charge Air Cooled |
|
CS6E-D575 |
19 L |
6 |
520kw |
575kw |
水空中冷/Turbocharged &Charge Aftercooled |
|
CS6E-D610 |
19 L |
6 |
553kw |
610kw |
空空中冷/Turbocharged &Charge Air Cooled |

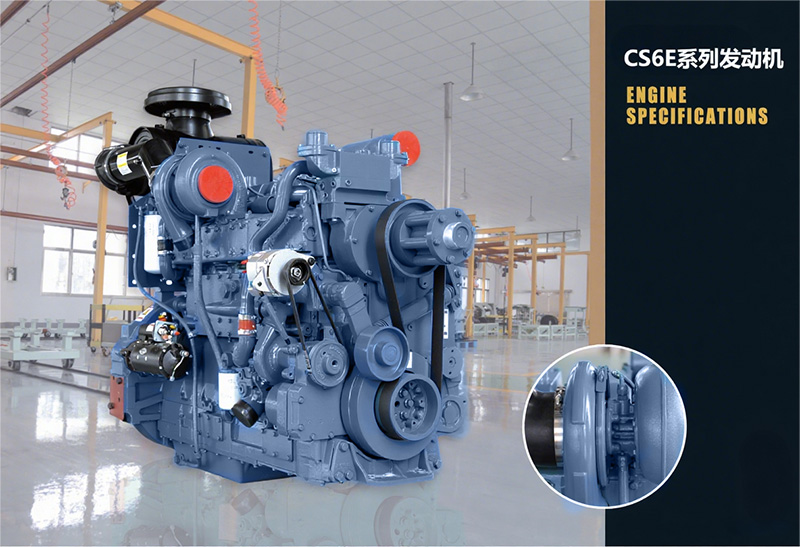

Product Image
