Natural gas engine CS4A-N
Product descriptionCamsler Natural Gas Engine BreaksFuel BarriersA proprietary low-pressure combustion technology (3-15 kPa) overcomes thechallenges of utilizing low-calorific-value gases such as
Product Details
Product Model
Product Description
Camsler Natural Gas Engine Breaks
Fuel Barriers
A proprietary low-pressure combustion technology (3-15 kPa) overcomes the
challenges of utilizing low-calorific-value gases such as biogas. Leading the
industry with 41% power generation efficiency and 87% comprehensive energy
efficiency, it achieves nitrogen oxide emissions ≤500 mg/Nm³. A modular
structure and cold-start technology ensure stable operation in extreme cold
down to -30℃, while a 64,000-hour major overhaul interval redefines reliability
standards.
|
型号/Model |
CS4A-N36 |
CS4A-N39 |
|
进气方式/Intake Mode |
自然吸气/Natural Aspiration |
|
|
额定功率Kw/Rated Power |
33 |
36 |
|
备用功率Kw/Standby Power |
36 |
39 |
|
气缸数/No.of Cylinders |
4 |
|
|
缸径mm/Bore |
102 |
|
|
行程mm/Stroke |
120 |
|
|
压缩比/Compression Ratio |
11.5:1 |
9.5:1 |
|
频率Hz/Frequency |
50HZ |
60HZ |
|
额定转速rpm/Rated Speed |
1500 |
1800 |
|
排量L/Displacement |
3.9 |
|
|
润滑液容量L/Lube Capacity |
10.9 |
|
|
冷却方式/Cooling System |
强制水冷循环/Forced Water Cooling Circulation |
|
|
启动系统/Starting Method |
24V电启动/24V
Electric Start |
|

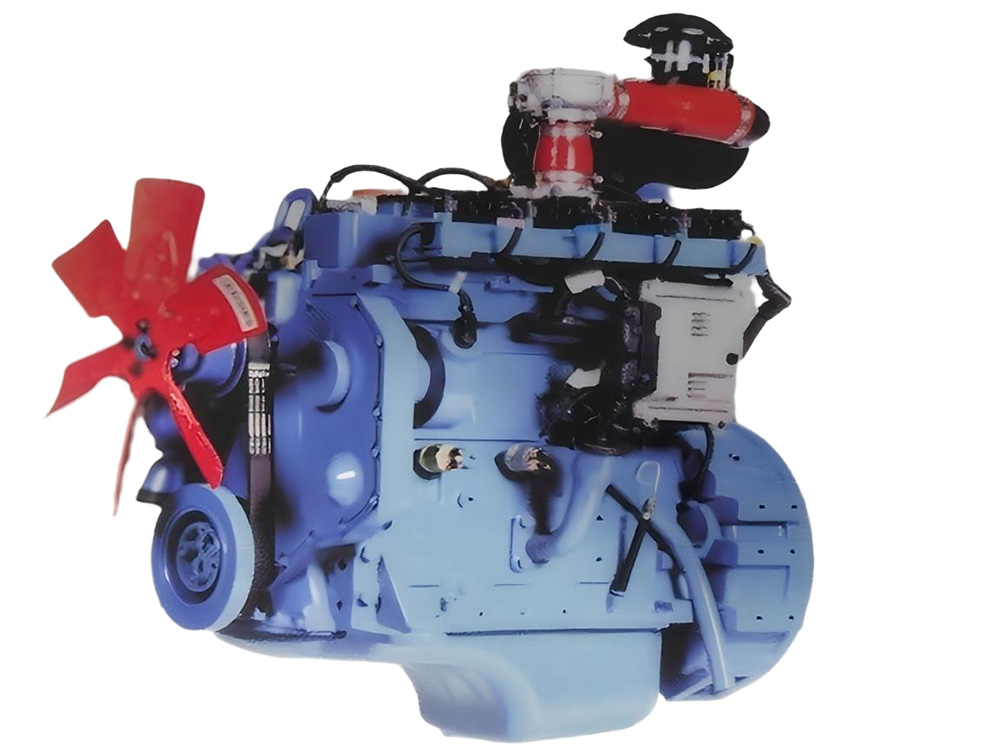

Product Image
