liquefied gas CS6AT-P
Camsler Natural Gas Engine: Seven-Tier Explosion Protection for Mission-Critical SafetyEngineered with a comprehensive seven-tier explosion protection system, the Camsler Natural Gas Engine builds a r
Product Details
Product Model
Product Description
Camsler Natural Gas Engine: Seven-Tier
Explosion Protection for Mission-Critical Safety
Engineered with a comprehensive seven-tier explosion protection system, the Camsler Natural Gas Engine builds a robust safety barrier—from multi-stage flame arrestors to intelligent knock control, covering the entire chain from gas supply to exhaust emission. Corrosion-resistant valve technology withstands hydrogen sulfide erosion, while the integrated electrical cabinet design eliminates any risk of current leakage. Validated by 48,000 hours of operation in biogas environments, it delivers military-grade protection for high-risk applications such as landfills and chemical industrial parks.
|
型号/Model |
CS6AT-P94 |
CS6AT-P103 |
|
进气方式/Intake Mode |
增压空空中冷/Turbocharged and Air Cooled |
|
|
额定功率Kw/Rated Power |
85 |
94 |
|
备用功率Kw/Standby Power |
94 |
103 |
|
气缸数/No.of Cylinders |
6 |
|
|
缸径mm/Bore |
102 |
|
|
行程mm/Stroke |
120 |
|
|
压缩比/Compression Ratio |
11.5:1 |
9.5:1 |
|
频率Hz/Frequency |
50HZ |
60HZ |
|
额定转速rpm/Rated Speed |
1500 |
1800 |
|
排量L/Displacement |
5.9 |
|
|
润滑液容量L/Lube Capacity |
16.4 |
|
|
冷却方式/Cooling System |
强制水冷循环/Forced Water Cooling Circulation |
|
|
启动系统/Starting Method |
24V电启动/24V
Electric Start |
|

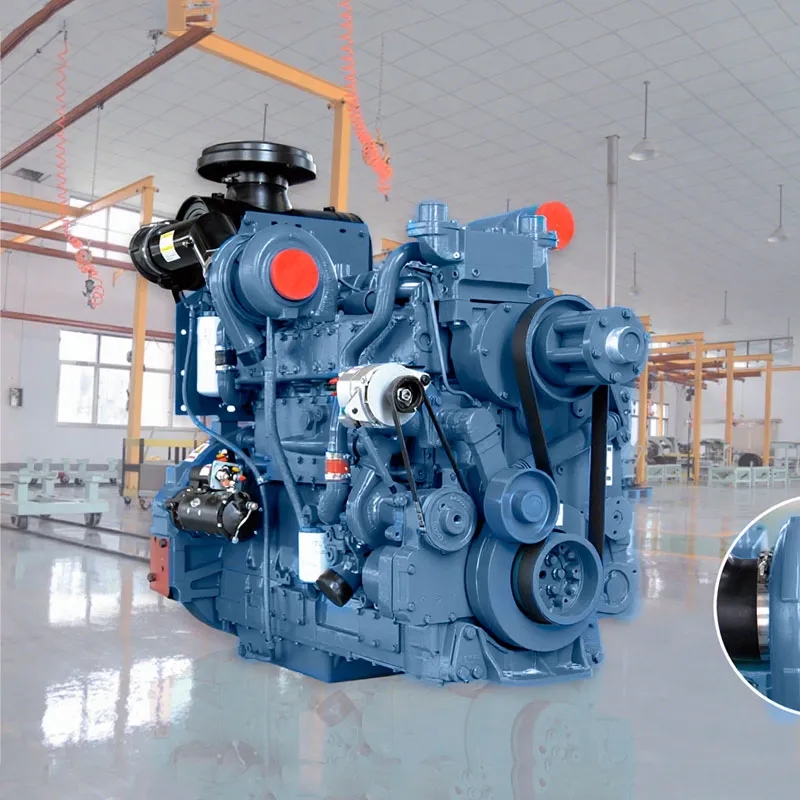

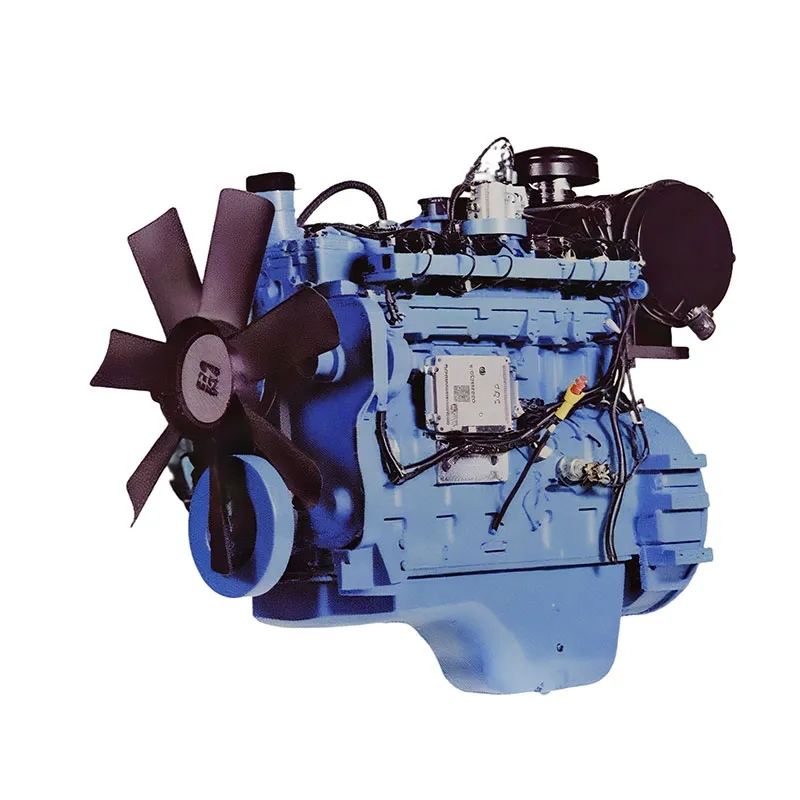

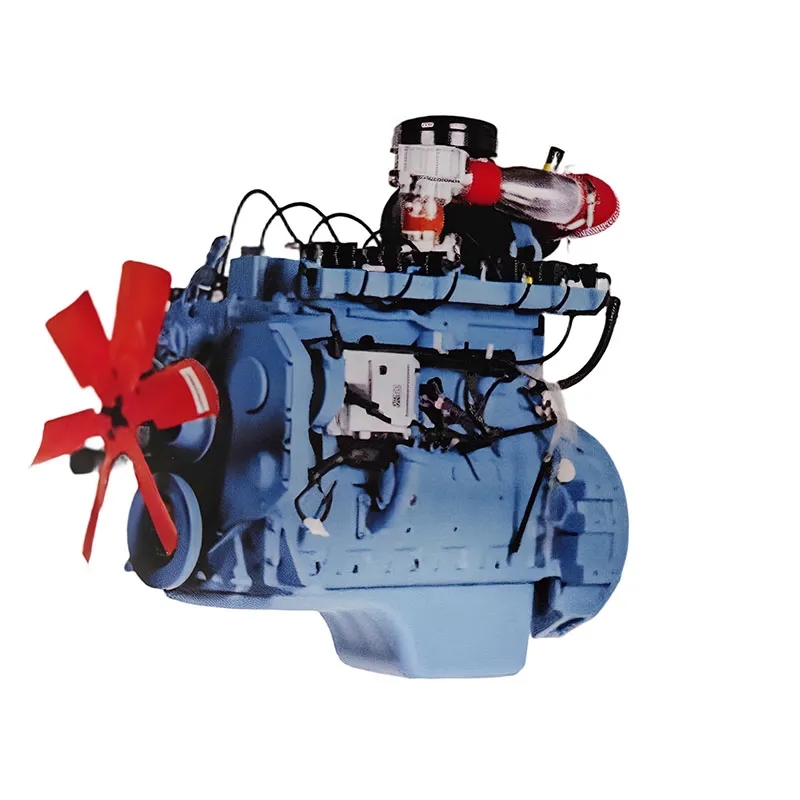

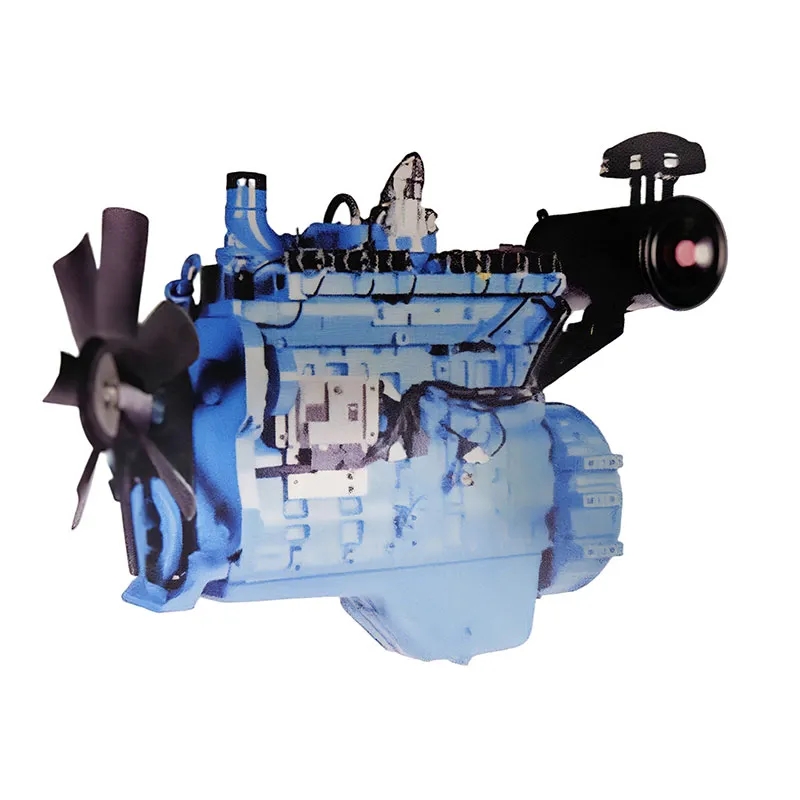

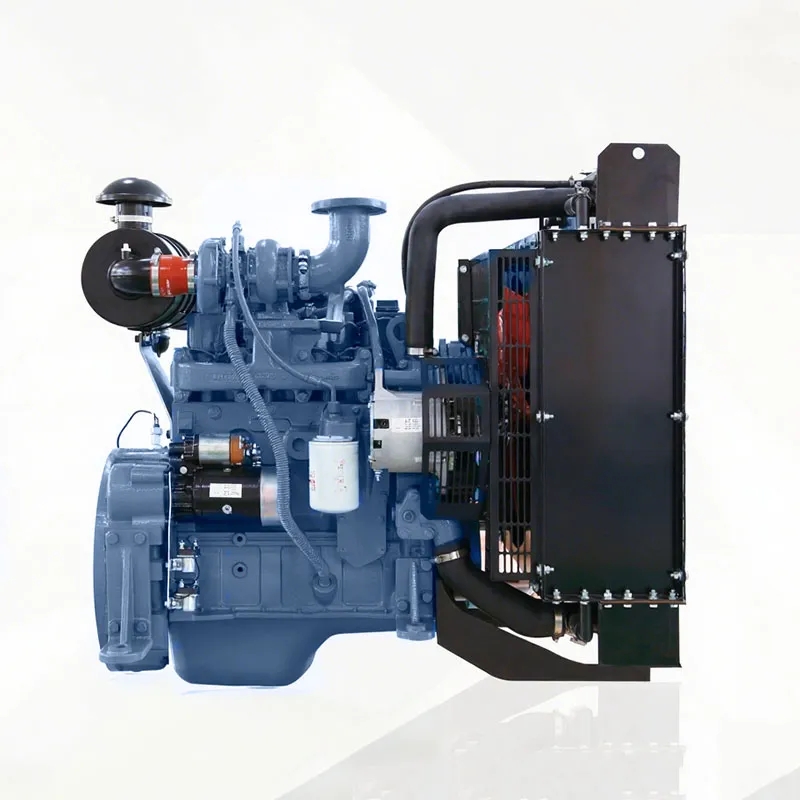

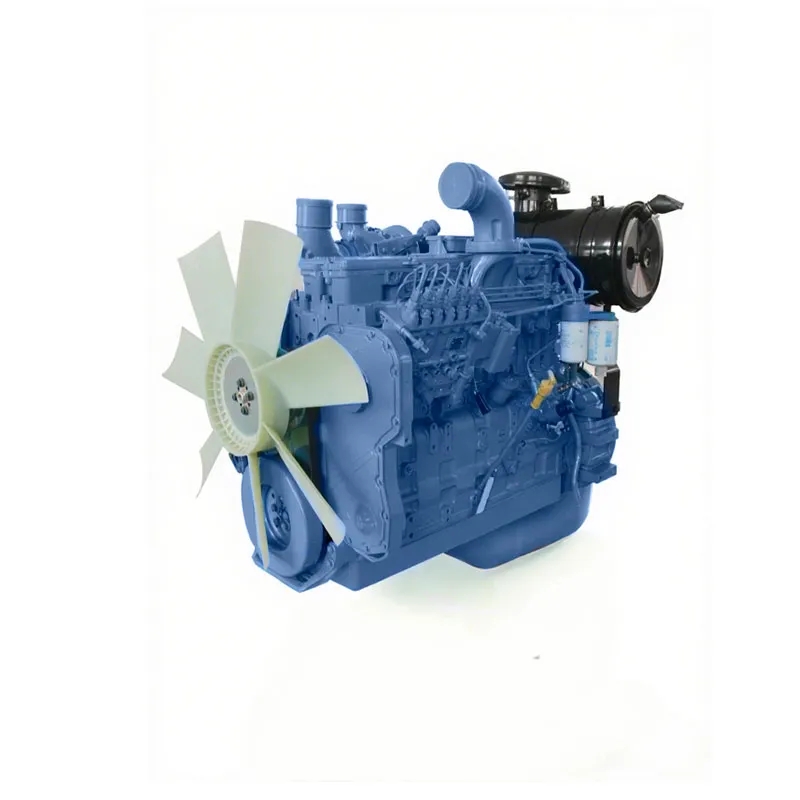

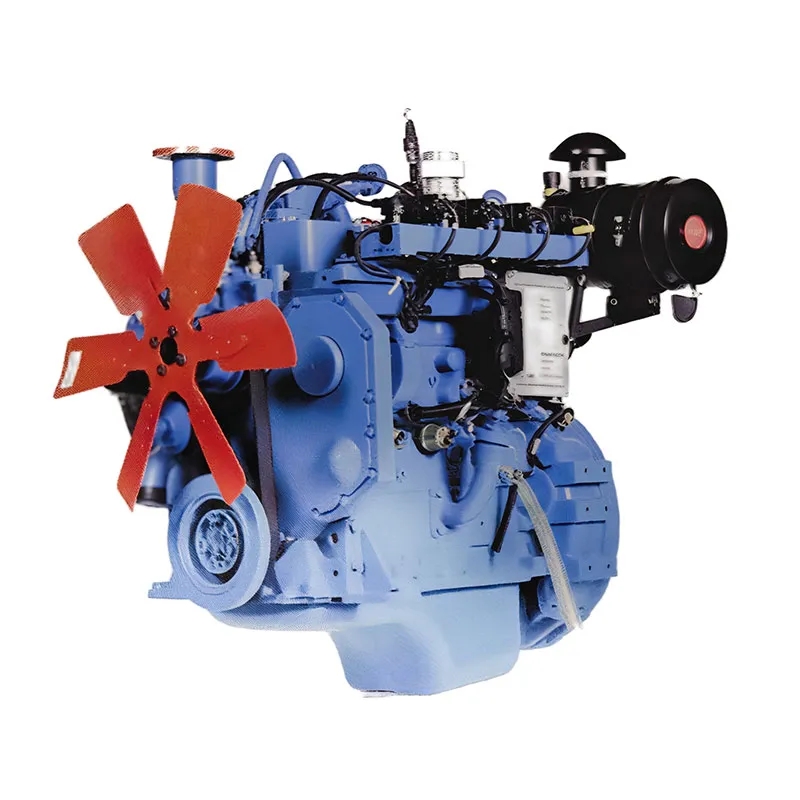

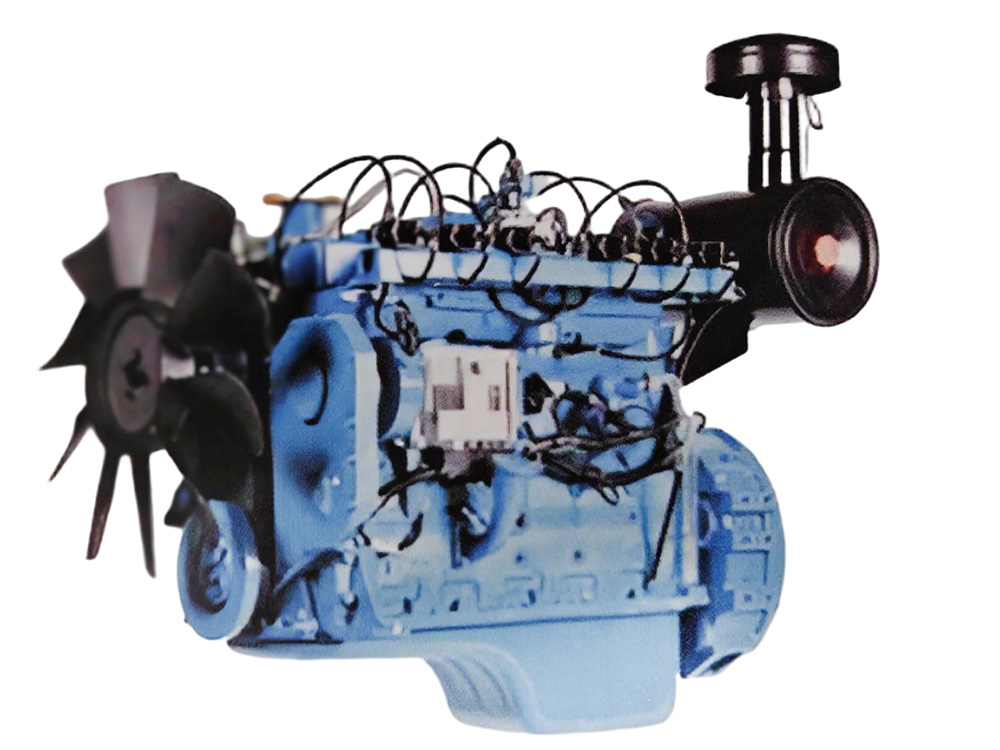

Product Image
