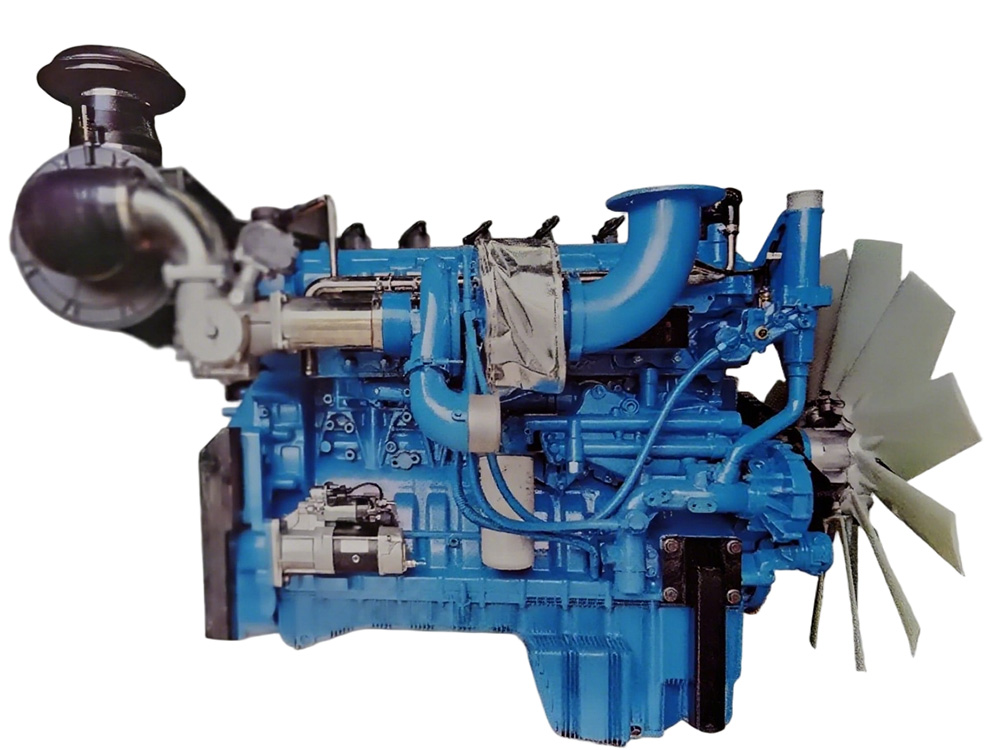

Camsler Natural Gas Engine: Unmatched Power Density and Fuel Flexibility
The Camsler Natural Gas Engine delivers
22% higher power density compared to similar models. Its highly integrated
control system reduces electrical cabinet space by 50%, while the lightweight
engine body is ideally suited for specialized applications such as marine and
mobile power stations.
With fuel pressure capability spanning from an ultra-low 3 kPa to 25 MPa, it achieves unprecedented fuel flexibility. A multi-stage vortex fuel valve effectively handles gas impurities, enabling 12,000 hours of clog-free operation in challenging environments like coke oven gas applications. Modular injection units allow for on-site rapid replacement, cutting maintenance time by 70%.
|
型号/Model |
CS6FT-N360 |
CS6FT-N385 |
CS6FT-N390 |
CS6FT-N423 |
|
进气方式/Intake Mode |
增压空空中冷/Turbocharged and Air Cooled |
|||
|
额定功率Kw/Rated Power |
330 |
350 |
360 |
385 |
|
备用功率Kw/Standby Power |
360 |
385 |
390 |
423 |
|
气缸数/No.of Cylinders |
6 |
|||
|
缸径mm/Bore |
135 |
|||
|
行程mm/Stroke |
169 |
|||
|
压缩比/Compression Ratio |
12.1:1 |
|||
|
频率Hz/Frequency |
50HZ |
60HZ |
||
|
额定转速rpm/Rated Speed |
1500 |
1800 |
||
|
排量L/Displacement |
14.5 |
|||
|
润滑液容量L/Lube Capacity |
50 |
|||
|
冷却方式/Cooling System |
强制水冷循环/Forced Water Cooling Circulation |
|||
|
启动系统/Starting Method |
24V电启动/24V
Electric Start |
|||
