Natural gas engine CS6CT-N
Our integrated solution for biomass and landfill gas utilization employs dual technologies—precision combustion optimization and waste heat recovery—to achieve a system-wide energy efficiency of 87%.
Product Details
Product Model
Product Description

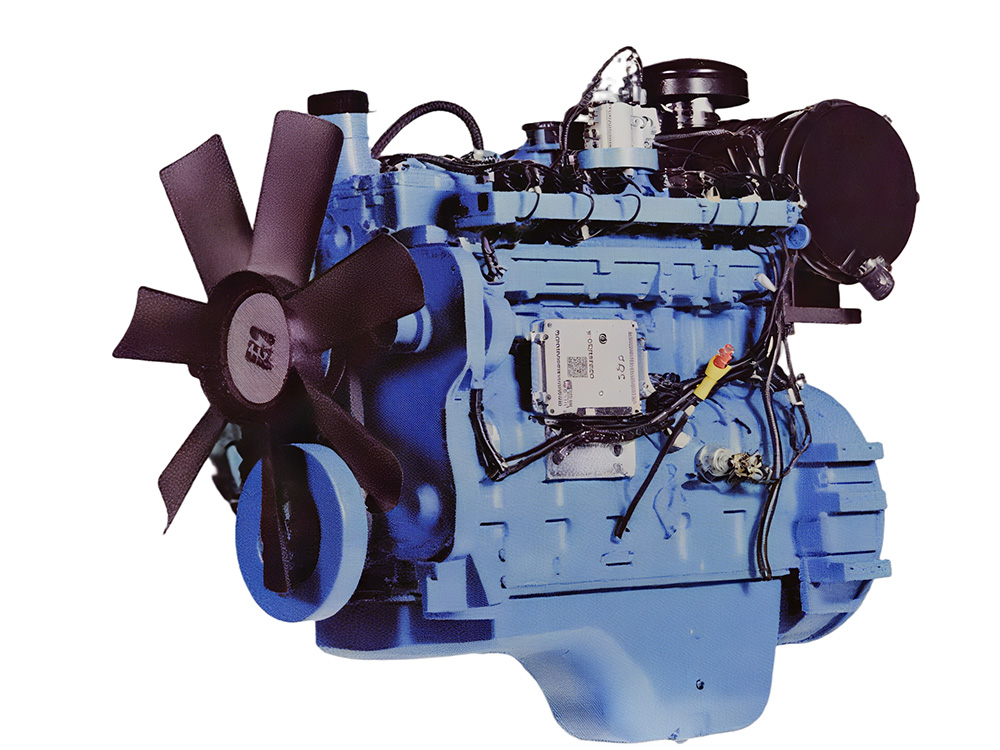

Camsler Natural Gas Engine: Optimized for Biomass and Landfill Gas
Efficiency
Our integrated solution for biomass and landfill gas utilization employs dual technologies—precision combustion optimization and waste heat recovery—to achieve a system-wide energy efficiency of 87%. The unique exhaust design maintains NOx emissions below 2 g/kW·h, meeting the strictest standards including China VI and Euro V. An ideal choice for distributed energy power stations, this solution reduces annual carbon emissions equivalent to planting 6,000 trees.。
|
型号/Model |
CS6CT-N181 |
CS6CT-N199 |
|
进气方式/Intake Mode |
增压空空中冷/Turbocharged and Air Cooled |
|
|
额定功率Kw/Rated Power |
165 |
181 |
|
备用功率Kw/Standby Power |
181 |
199 |
|
气缸数/No.of Cylinders |
6 |
|
|
缸径mm/Bore |
114 |
|
|
行程mm/Stroke |
145 |
|
|
压缩比/Compression Ratio |
11.5:1 |
9.5:1 |
|
频率Hz/Frequency |
50HZ |
60HZ |
|
额定转速rpm/Rated Speed |
1500 |
1800 |
|
排量L/Displacement |
8.9 |
|
|
润滑液容量L/Lube Capacity |
27.6 |
|
|
冷却方式/Cooling System |
强制水冷循环/Forced Water Cooling Circulation |
|
|
启动系统/Starting Method |
24V电启动/24V
Electric Start |
|
Product Image
